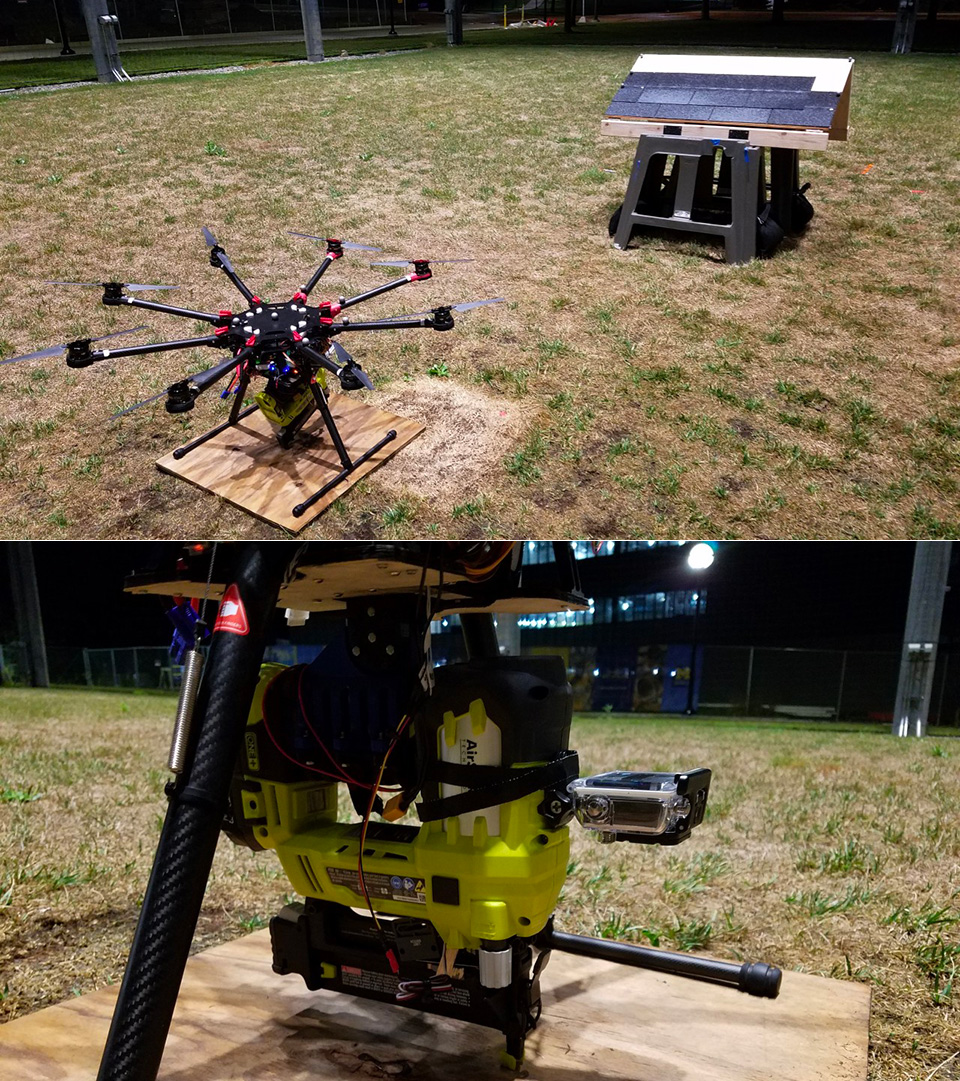

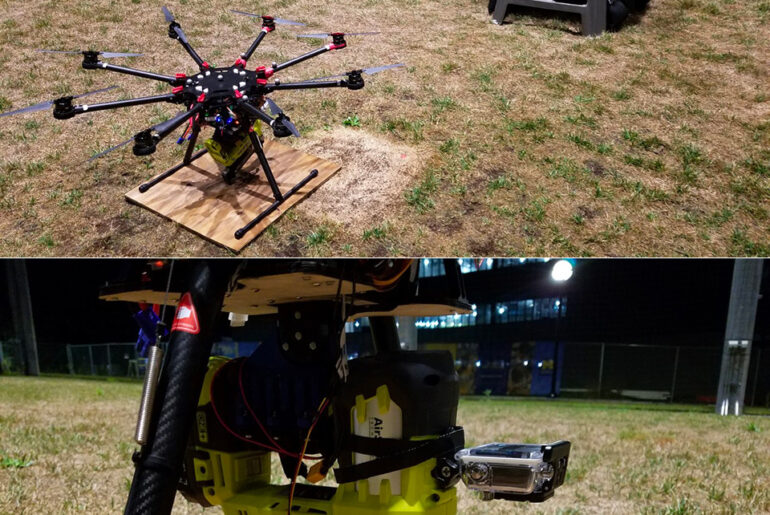

University of Michigan (UM) researchers have equipped an autonomous drone with a nail gun to fix asphalt shingles on rooftops. They used a DJI S1000 Octocopter set up with a group of cameras and markers to enable it know exactly where it’s going and proper placement for the nails. A virtual switch was programmed so the drone automatically pulls the nail gun trigger when in the correct position.
Since this is only a proof of concept, it can only operate for 10 minutes at a time or indefinitely when a power cable is added. The software they used was a modified version of Ardupilot (APM) running on an embedded BeagleBone Blue single-board Linux computer. Its cascaded proportional-integral-derivative (PID) controller autonomously tracks a preloaded trajectory using motion capture feedback in Michiganโs outdoor netted motion capture equipped flight facility.
- ๐๐ถ๐ด๐ต๐๐๐ฒ๐ถ๐ด๐ต๐ ๐ฎ๐ป๐ฑ ๐ฃ๐ผ๐ฟ๐๐ฎ๐ฏ๐น๐ฒ - The drone is lightweight and compact, weighing...
- ๐ก๐ผ ๐ฅ๐ฒ๐ด๐ถ๐๐๐ฟ๐ฎ๐๐ถ๐ผ๐ป ๐ก๐ฒ๐ฒ๐ฑ๐ฒ๐ฑ - Under 249 g, FAA Registration and Remote ID are not required if...
- ๐๐ ๐๐ฒ๐ป๐ฑ๐ฒ๐ฑ ๐๐น๐ถ๐ด๐ต๐ ๐ง๐ถ๐บ๐ฒ - Enjoy longer flights with DJI Mini 2 SE, which offers a 31-min max flight...
It would be pretty easy to have a camera system mounted on the octocopter that understands both the orientation of the shingle and its position,โ said Ella Atkins, a professor of aerospace engineering and robotics.
