Patent Apple Pencil Sample Color Leak
Photo credit: Patently Apple via Sarang Sheth

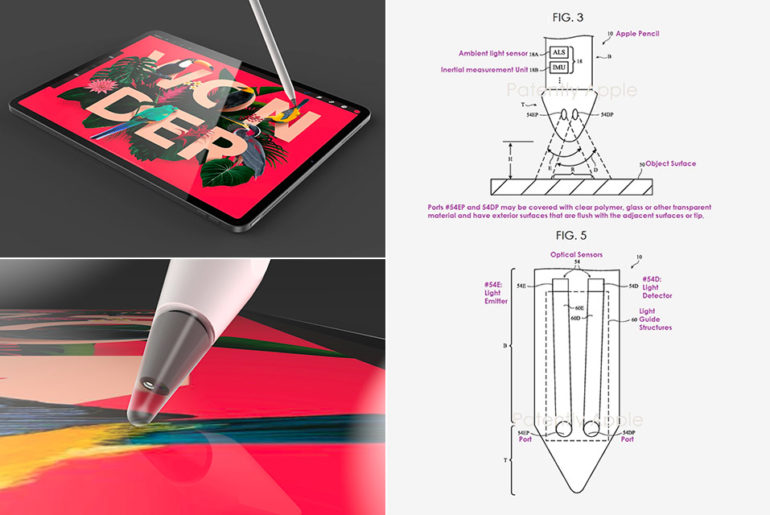

If you have this new third-generation Apple Pencil, the Erase-O-Matic becomes useless, and that is because it comes equipped with sensors in the tip that can sample colors from just about any object. The patent sketches reveal that the Apple Pencil tip has both a light emitter and optical color sensor, the latter of which measures light for a different RGB channel.


Patent Apple Pencil Sample Color Leak
Patent Apple Pencil Sample Color Leak
Now the light emitter could have an adjustable light spectrum, enabling users to adjust it during the measurements. It would use the data collected, such as ambient light color measurements, to allow for these adjustments in real-time. The measurements would be transmitted wirelessly to a companion device such as an iPad Pro or possibly future touchscreen MacBook. There’s no word yet on when we’ll see a functional prototype.

Sale
Apple Pencil (2nd Generation): Pixel-Perfect Precision and Industry-Leading Low Latency, Perfect for...
87,835 Reviews
Apple Pencil (2nd Generation): Pixel-Perfect Precision and Industry-Leading Low Latency, Perfect for...
  • WHY APPLE PENCIL — With pixel-perfect precision, tilt and pressure sensitivity, and imperceptible lag, Apple Pencil (2nd generation) makes painting,...
  • COMPATIBILITY — Apple Pencil (2nd generation) works with iPad Pro 12.9-inch (3rd, 4th, 5th, and 6th generation); iPad Pro 11-inch (1st, 2nd, 3rd,...
  • EASY AND NATURAL — Featuring a flat edge that attaches magnetically, Apple Pencil (2nd generation) allows you to change tools with just a tap from...

Patent Apple Pencil Sample Color Leak

Apple’s patent FIG. 5 is a side view of an illustrative electronic device with optical components that are mounted in a shaft portion of a device housing and that are optically coupled to a tip portion of the device using light guides,” according to Patently Apple.

Author

A technology, gadget and video game enthusiast that loves covering the latest industry news. Favorite trade show? Mobile World Congress in Barcelona.
