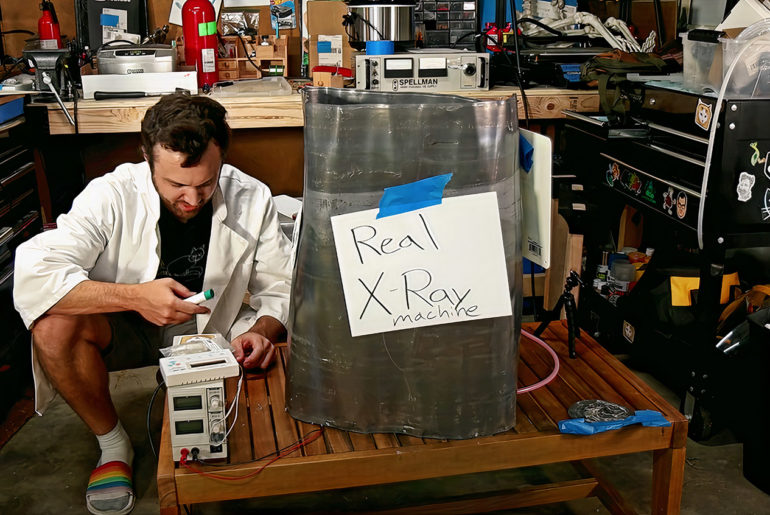

Will Osman Homemade X-Ray Machine
Many already know that the hospital fees can really add up in the US, even with proper health insurance. Engineer Will Osman found out that hard way when he received a hospital bill for nearly $70,000 USD that covered a 2-night stay, including a set of X-rays. Fortunately, his insurance covered most of the bill, leaving him with $2,500 to pay out of pocket, but he decided to take things into his own hands by building a functional X-ray machine at home.



In all, he spent less than $2500 for a power supply, X-ray vacuum tube, Geiger counters and a roll of sheet metal. Some of these things definitely should not be handled by a non-professional, especially anything that involves radiation. His initial prototype did not image the X-rays very well, so an intensifying screen was added to convert them into visible light. This visible light, or photons, are then captured by a DSLR camera.

Official Creality Ender 3 Neo 3D Printer with CR Touch Auto Leveling Kit, Full-Metal Extruder Glass...
10,318 Reviews
Official Creality Ender 3 Neo 3D Printer with CR Touch Auto Leveling Kit, Full-Metal Extruder Glass...
  • 1.Auto Bed Leveling: Upgraded CR Touch 16-point automatic bed leveling technology saves you in the trouble of manual leveling. Easy to use, the...
  • 2.Smooth Feeding: Full-metal extruder with greater force enables smooth feeding, reducing the risk of nozzle blockage. Quick Heat Dissipation:...
  • 3.Silent Mainboard: Low-decibel operation ensured by a silent mainboard, will not bothering study or work. Which has stronger anti-interference,...

I used 40kV silicone insulated wire and surrounded that with additional silicone tubing, and then just stayed away from the tube during operation. After the initial tests, a giant 2mm lead sheet was placed around the tube,” said Osman.
